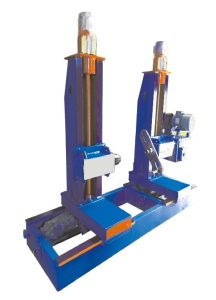

NUTAN SCIENTIFIC INSTRUMENTS Portable type & Column type Pay off stand is an electrically controlled precision traversing device. The cable guide carriage slides between two vertical arms which are traversed by a screw driven by a motor.The reverse of traverse is actuated by an inductive sensor in conjunction with a timing device. This determines a delay between forward and reverse motion as a function of the drum speed and wound diameter to maintain the uniformity of winding near the drum flanges.
For cables which cannot accept deflection through the normal traversing angle, The cable axis can be maintained in straight line. The traversing pitch and stroke can be adjusted during running in either mode of operation.
Maintaining uniform winding through electrically controlled traverse. Take up stand is driven by AC drive motor in speed mode or torque depending on application. In addition a 3 speed Gear Box allows the selection of optimum sensitivity of tension control throughout the full range of the drum side.
The machine is a sturdy welded structure and does not require any foundation.
