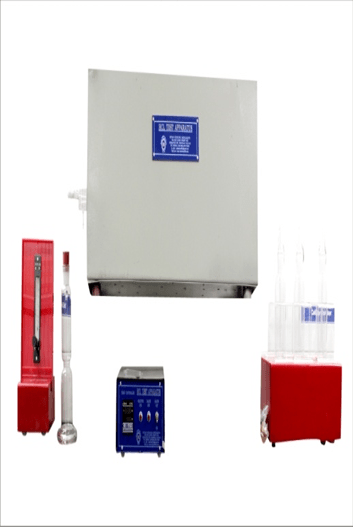

It comprises of following items:
Tube Furnace: Temperature controlled by programmable PID Digital Temperature indicator cum controller. Equipped with canthal A-1 heating element of 7.5Amp. Single phase 220/240 v AC. Painted with heat resistant enamel. Dimensions confirm to IEC: 754 Pt-1 1994.
AIR GENERATOR: Constant supply of air is generated by specifically designed unit based on rubber balloon suction and compression principle through electromagnet. Single phase 220/240 v AC.
AIR FLOW CONTROL PANAL: Air Flow is controlled by flow-meter of range 100 to 600 c.c. Flow- meters with rotary knob is mounted on Acrylic board panel. Inlet and outlet of Flow-meter lies on rear side (make- FITZER/EIL./Vaksler) confirm to IEC-754 (Pt-1)1994.
COMUSTION TUBE & BOAT TRANSFER UNIT:
Manufactured by A-1 class quartz glass with grinded joints to enable firm grip. Boat transfer unit contains constantan/platinum wire with U-type magnet. One quartz boat is provided. All dimensions confirms to IEC: 754 (Pt-1)1994.
TRAP BOTTELS & MAGNETIC STIRRER:
Two trap bottles joining each other by ball and socket joints. One of which joining to combustion tube directly by grinded joint another bottle confined with glass stopper one magnetic stirrer is provided with Teflon coated metallic knob which is dropped inside the first trap bottle to give swifling motion to the liquid when magnetic stirrer is putting ON. Attractive acrylic stand is provided to hold these two trap bottles against the furnace. Overall apparatus confirms to IEC-754 (Pt-1) 1994.
